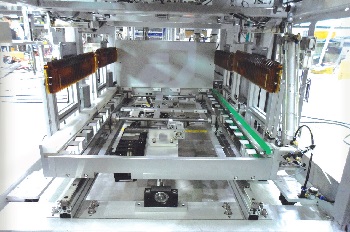

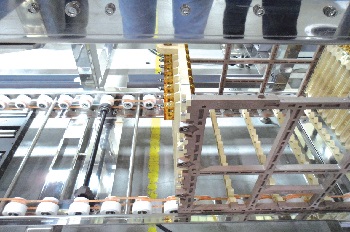

Close up

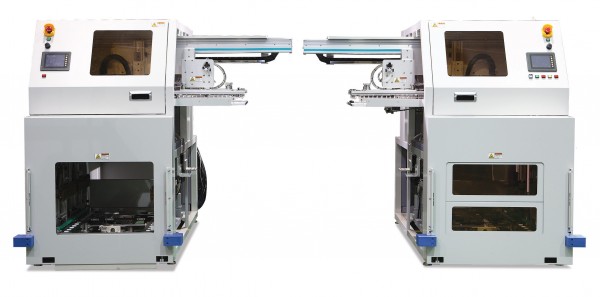

CO2 LASER DRILL가공기에 BASKET을 이용하여 제품을 개별로 공급 및 TABLE에 수취하는 장비로 제품보호, 스

크레치방지, 2매투입수취를 예방하여, LOT관리 편의성을 제공합니다.

It suppllies products to CO2 LASER DRILL processor Use basket individually and receives them in table.
It protects products and provides the convenience of scratch prevention, 2sheets input and receiving
prevention, and LOT management.

利用BASKET向CO2 LASER DRILL加工机分别供应产品及收板到TABLE的设备，可保护产品，防止刮伤并预防一次收放2片
PCB板，且便于批次管理。
CO2 laser DRILL加工機にBASKETを用いて製品の取り扱いを一枚ずつ行い、TABLEに受け取る装備で、製品保護、スクラ
ッチ防止、2枚差しの投入/受取防止が可能で、LOT管理における便宜を図ることができる装備です。

◼ Application product
   FC-BGA, FC-CSP, CSP, BGA

​

◼ Application process
   DRILL

​

◼ Application line
   UV-LASER , CO2-LASER

◼ Specification
   Size : 1950L x 1720W x 1820H
   Size : INPUT 1550L x 850W x 1580H
   (including control panel)
   RECEIVER : 1350L x 850W x 1580H
   PASS LINE : 1000mm ± 10 standard
   CYCLE TIME : 45sec(including change time : 20sec)
   Product size : 405 x 415
   Product thickness : 0.4 ~ 2.0T(mm)
   Operating method : For TOUCH PANEL use
   Air pressure : 5~6kg/cm3
   Voltage for use : 220V 3Ø 50/60Hz
