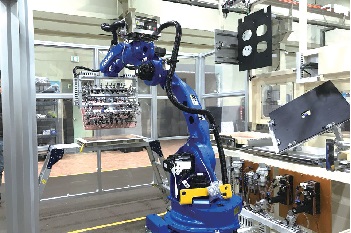

Close up​

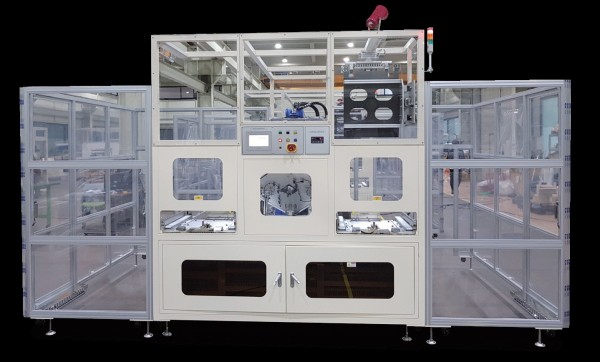

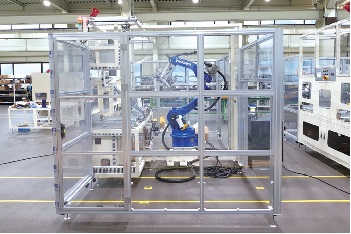

본 설비는 투입부 LIFT에 적재된 제품을 분리하여 제품을 한 장씩 AOI설비에 공급하고 검사가 완료된 제품은 수취

부 LIFT에 제품을 자동으로 적재하는 장비임.

This equipment is loaded on the product inlet and disconnect the LIFT products by a slip in the AOI facilities
Department of supply and inspection is completed, the product will automatically load the product on receipt
of the LIFT equipment.

本设备是 在投入部LIFT上装载的产品分开, 把产品各一张供货在AOI设备, 把完了验收的产品在收取部LIFT上自动装载的设
备。
投入部のLIFTに積載された製品を分離して製品を一枚ずつAOI設備に供給し、検査が終了した製品は受取部のLIFTに製品
を自動積載する装備です。

◼ Application product
   HDI, BGA, FC-BGA, CSP, HDI, FPCB

​

◼ Application process
   CIRCUIT, PSR

​

◼ Application line
   Circuit Exposure, PSR Exposure

◼Specification
   Size : 4400L x 3060W x 2400H
   CYCLE TIME : 65sec
   (Standard of Inspection time)
   Product size : 405~415 x 510(510 x 610)
   Product thickness : 0.04 ~ 1.6T(mm)
   Operating method : For TOUCH PANEL use
   Air pressure : 5~6kg/cm3
   Voltage for use : 220V 3Ø 50/60Hz
