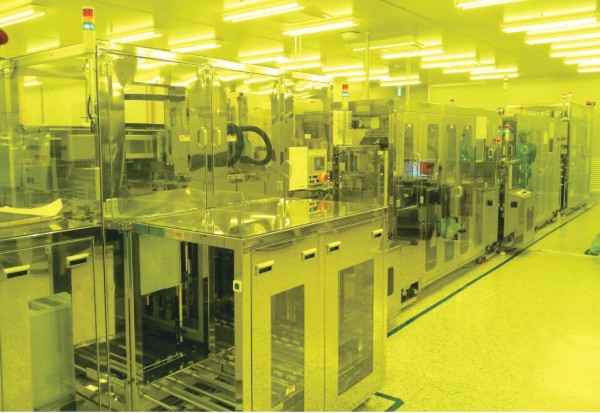

본 설비는 투입부 LIFT에 적재된 제품을 분리하여 제품을 한 장씩LDI설비에 공급하고 LDI 노광이 완료된 제품을
반전하여 LDI 노광 후 검사가 완료된 제품은 수취부 CONVEYOR에 제품을 자동으로 적재하는 장비임.

This equipment is loaded on the product inlet and disconnect the LIFT products by supplying a slip LDI facility
LDI exposure can reverse a completed product after a check has been completed, LDI-products Department
of receivable in CONVEYOR The product will be automatically loaded equipment.

本设备是 在投入部LIFT上装载的产品分开, 把产品各一张供货在LDI设备, 完了LDI工序的产品做反转LDI工序后把产品在收取
部CONVEYOR上自动装载的设备。
本設備は,投入部LIFTに積載された製品を分離して製品を一枚ずつLDI設備に供給し,LDI露光が完了した製品を反転してLDI
露光後,検査が完了した製品は受取部CONVEYORに製品を自動的に積載する装備である。

◼ Application product
   HDI, BGA, FC-BGA, CSP, HDI, FPCB

​

◼ Application process
   CIRCUIT, PSR

​

◼ Application line
   Circuit Exposure, PSR Exposure

◼ Specification
   Size：10440L x 1500W x 2400H
   Product size : 533 x 610, 610 x 810
   Product Thickness : Min 0.04mm~ Max 2.0mm
   PASS LINE : 950±20mm
   Operating method : For Touch Panel use
   Air pressure : 5~6Kgf/cm2
   Voltage for use : AC220V, 3Ø, 60Hz
