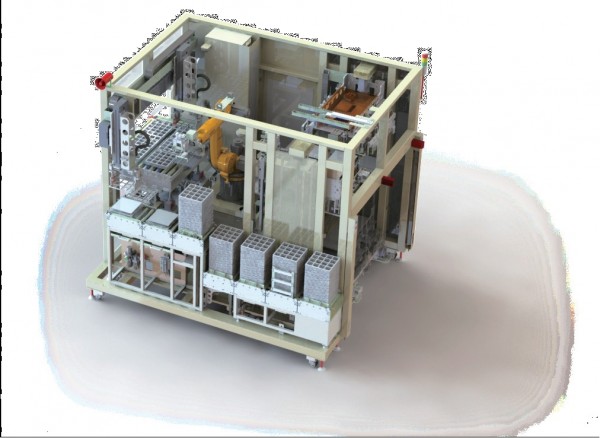

본 장비는 MLCC제품 2차 가소로에 Chip이 Loading된 Mesh를 건조로 투입가능하도록 JIG(Rack)에 투입하는 장비
이다.

This equipment is a device that automatically injects chips into secondary BAKE OUT of MLCC products.

本设备是将Chip自动投放到MLCC产品2nd BAKE OUT 装置。
MLCC製品の2次仮焼炉にChipがLoadingしたMeshを乾燥炉に投入するためにJIG(Rack)に投入する装備です。

◼ Application product
   MLCC

​

◼ Application process
   2nd BAKE OUT

◼ Specification
   Size : 2160L x 2600W x 2300H
   Product size
   CHIP : 3.2w~2.5d size chip
   CYCLE TIME : 15sec
   Operating method : For Touch Panel use
   Air pressure : 5~6Kgf/cm2
   Voltage For use : AC220V, 1Ø, 50/60Hz
