MEASUREMENT INSTRUMENT OF DIE TILT - DTM001
작성자 최고관리자 | 작성일20-07-15 13:22
관련링크
본문

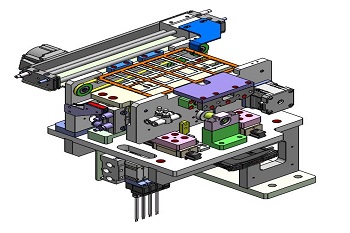

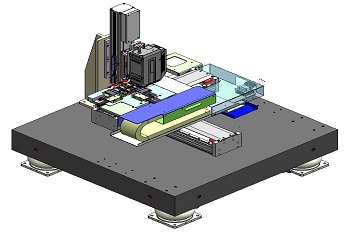

Close up

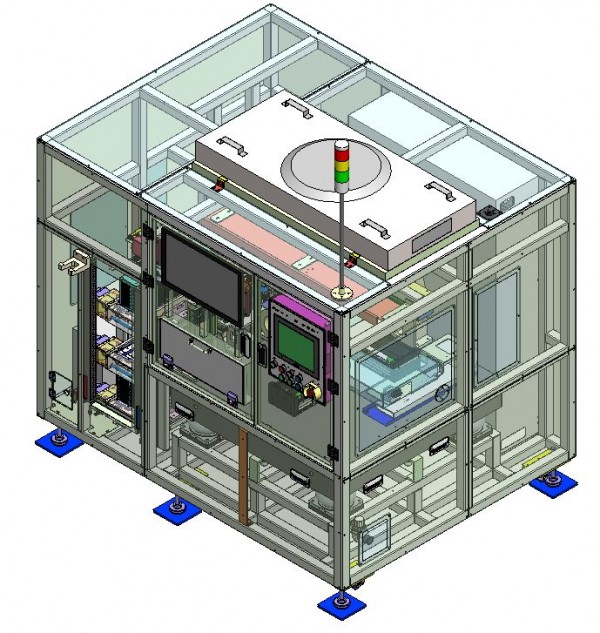

본 장비는 ISM제품의 PKG공정에서 Die와 기판사이의 Tilt를 측정하는 장치이다.
This equipment is a device that measures the tilt between Die and the driver in the PKG process of ISM.
本设备是在ISM产品的PKG工程中测定Die和奇思潘的Tilt的装置。
ISM製品のISM製品のPKG工程におけるDieと基板とのTiltを測定するための装備です。
◼ Application product
PKG, HDI, FPCB, RF-PCB
◼ Application process
PKG
◼ Specification
Size : 1450L x 1850W x 1800H
Product size : Variable
Motion : Linear Servo
Measurement precision : 2㎛
Operating method : For Touch Panel use
Air pressure : 5~6Kgf/cm2
Voltage For use : AC220V, 3Ø, 50/60Hz
