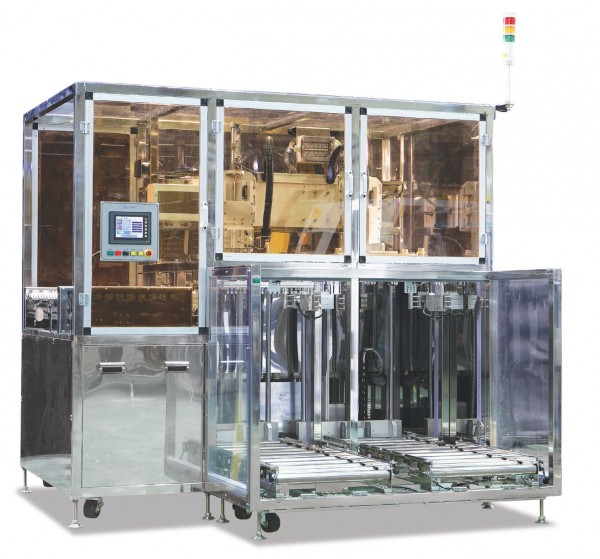

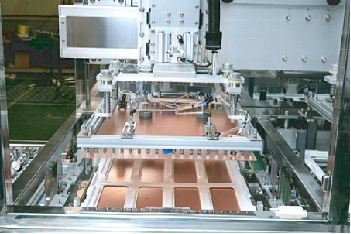

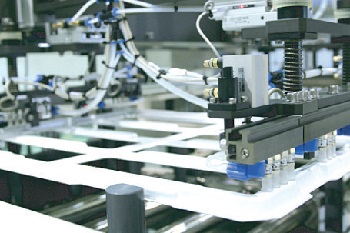

Close up

PCB안착 JIG인 TRAY를 이용하여 개별적으로 제품을 운용하는 장비이며, TRAY로 인하여 제품보호, 스크레치방지,

2매 투입/수취를 예방하며, LOT관리 편의성을 제공합니다.

Using tray for PCB setting-jig, it operates products individually. By TRAY, it provides convenience of product
protection, scratch prevention, 2sheets input prevention, and LOT management.

此设备利用PCB固定TRAY，分别对产品进行操作。TARY可保护产品，防止刮伤并预防一次收放2片PCB板，且便于批次管
理。
PCBセットJIG TRAYを用いて製品の取り扱いを一枚ずつ行う装備であり、TRAYのために製品保護、スクラッチ防止、2枚
差しの投入/受取防止が可能で、LOT管理における便宜を図ることができる装備です。

◼ Application product
   HDI , BGA , FC-BGA , CSP ,BOC, FC-CSP

​

◼ Application process
   PRINT , CIRCUIT, PSR, ETC

​

◼ Application line
   SR, PRE-CUTTOR, UV-DI, V-LAMINATOR,
   DF-DEVELOP

◼ Specification
   Size : 1950L x 1720W x 1820H
   CYCLE TIME : 12sec
   (including TRAY substitution: 18sec)
   Product size : 405~415 x 510(510 x 610)
   Product thickness : 0.04 ~ 1.6T(mm)
   Operating method : For TOUCH PANEL use
   Air pressure : 5~6kg/cm3
   Voltage for use : 220V 3Ø 50/60Hz
