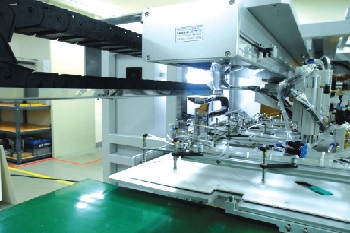

Close up

​

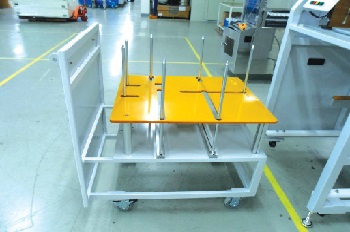

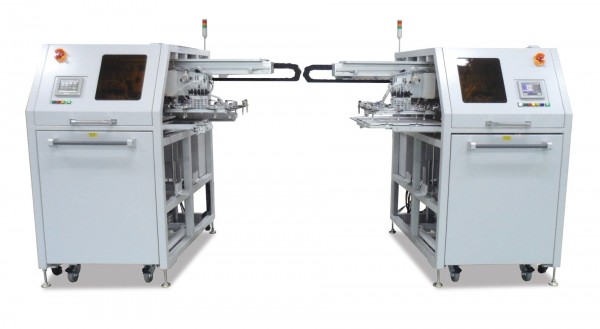

CO2 LASER DRILL 가공기에 제품을 자동으로 공급 및 TABLE에 수취하는 장비로 제품보호, 스크레치 방지, 2매 투

입 수취를 예방, LOT관리 편의성을 제공합니다.​

Using tray for PCB setting-jig, it operates products individually. By TRAY, it provides convenience of product
protection, scratch prevention, 2sheets input prevention, and LOT management.​

此设备利用PCB固定TRAY，分别对产品进行操作。TARY可保护产品，防止刮伤并预防一次收放2片PCB板，且便于批次管
理。
CO2 laser DRILL加工機に製品を自動で供給し、TABLEに受け取る装備で、製品保護、スクラッチ防止、2枚差しの投入/
受取防止が可能で、LOT管理における便宜を図ることができる装備です。

◼ Application product
   FC-BGA, FC-CSP, CSP, BGA

​

◼ Application process
   DRILL

​

◼ Application line
   UV-LASER , CO2-LASER

◼ Specification
   Size : 1950L x 1720W x 1820H
   Size : INPUT 1550L x 850W x 1580H
   (includingcontrol panel)
   RECEIVER : 1350L x 850W x 1580H
   PASS LINE : 1000mm ± 10 standard
   CYCLE TIME : 45sec(including changetime : 15sec)
   Product size : 405 x 415
   Product thickness : 0.04 ~ 2.0T(mm)
   Operating method : For TOUCH PANEL use
   Air pressure : 5~6kg/cm3
   Voltage for use : 220V 3Ø 50/60Hz
