Close up_​​

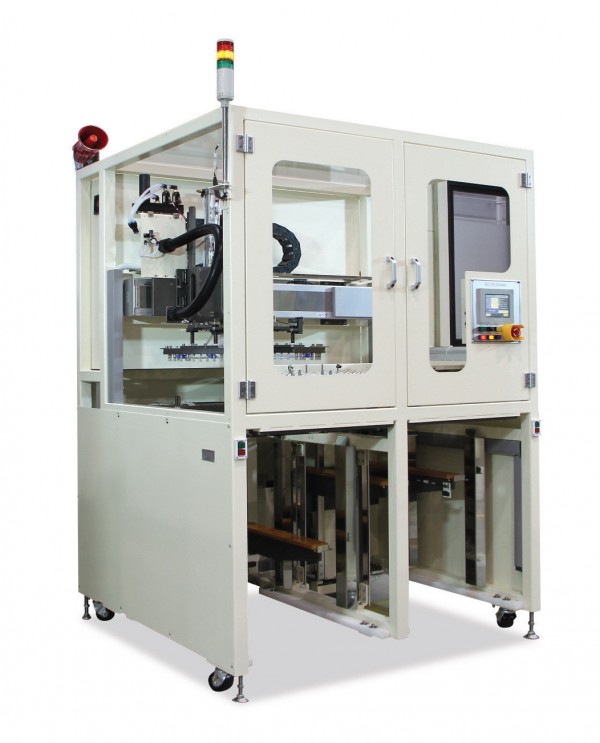

인쇄회로 기판을 BOX에서 MAIN으로 투입시키는 장치입니다. 또한, 장비에서 작업이 끝난 인쇄회로 기판을 BOX

에 수취기 가능합니다.

This is a device to input PCB to MAIN equipment from BOX. Also, it is available to receive it in BOX which is
completed PCB in MAIN equipment..

此设备可将印刷电路板和衬纸分离后，将其从BOX供应至MAIN，再从MAIN将完工的PCB收板至BOX
プリント回路基板をBOXからMAIN装備に投入するための装備です。また、装備から作業が終了したプリント回路基板を
BOXに受け取ることができます。

◼ Application product
   HDI, BGA, FC-BGA, CSP, BOC, FPCB

​

◼ Application process
   SR circuit, PLATING, PRINT

​

◼ Application line
   De-smear, FILL cleaning, Chemical-plate, UV,
   LAMINATOR, DEVELOPING, LDI, ETCHING, Exposure

​

◼ Specification
   Size : 1320L x 1260W x 1870H
   PASS LINE : 940H standard ± 50mm
   (other recieiver also used)
   CYCLE TIME : 10sec
   Product size : 405~415 x 510(510 x 610)
   Product thickness : 0.04 ~ 2.0T(mm)

   Operating method : For TOUCH PANEL use
   Air pressure : 5~6kg/cm3
   Voltage for use : 220V 3Ø 50/60Hz
