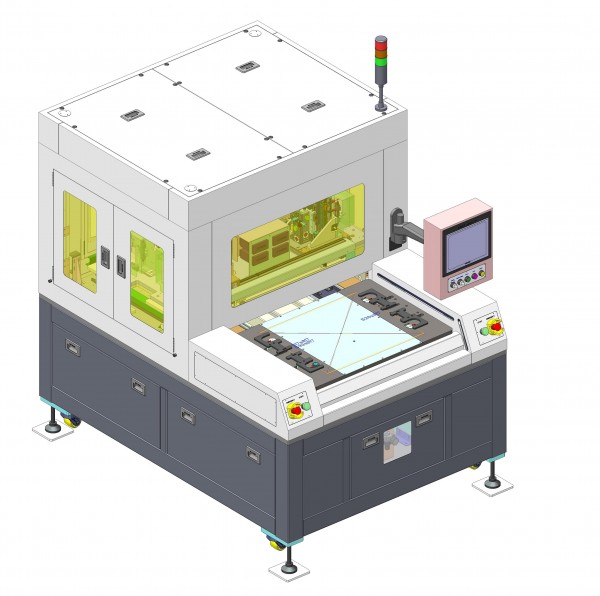

RIVET MACHINE - RM5100
작성자 최고관리자 | 작성일20-07-14 18:56
관련링크
본문
Close up
다층기판 제조시 회로가 형성된 내층 기재(CCL) 간의 층간 Registration을 위한 장비로 V-Press 時 층간 틀어짐을
방지기하 위해 기구적(riveting)으로 결합하는 설비
Equipment for interlayer registration between layers (CCL) where circuitry is formed during manufacture of
multi-layer substrate, combining equipment to prevent interlayer malfunction during V-Press
V-Press时 为了防止几班的扭,把Rivet使用固定的设备
多層基板の製造時に回路が形成された内層基材(CCL)間の層間Registrationを行うための装備で、V-Press 時における層間
捻れを防止するために工具(riveting)で接合させる設備です。
◼ Application product
HDI, FPCB, RF-PCB
◼ Application process
LAY-UP
◼ Specification
Size : 1900L x 1400W x 1800H
Product size : PCB : 510x610, 518x610, 533x610
CCL : 517x917, 520x617, 533x617
PASS LINE : 950±20mm
Method : Servo Press
Pressure : 0.1~1(ton)
Operating method : For Touch Panel use
Air pressure : 5~6Kgf/cm2
Voltage For use : AC220V, 3Ø, 50/60Hz
